Custom Backlit Displays and LED Lightboxes
Custom backlit displays are illuminated display systems that use internal LED lighting behind printed graphics to create a brighter, more premium visual presentation. They are designed for businesses that want stronger visibility, cleaner color presentation, and a more modern branded look than standard non-lit displays can provide.
At FireBird Prints, we produce custom backlit display systems in Vancouver for businesses that need high-impact branding in trade shows, retail spaces, exhibitions, showrooms, corporate interiors, and promotional environments. These systems are especially effective where attention is competitive, lighting conditions vary, or the brand needs to feel more polished and elevated.
A strong backlit display does not just increase brightness. It improves how people perceive the brand from a distance and up close. It helps create a cleaner, more professional visual impression in spaces where flat signage may feel less noticeable.
For businesses building a larger visual system, backlit displays can also be integrated with custom booths or paired with tension fabric displays to create a more complete branded environment.
Backlit Fabric Is Not the Same as Standard Fabric
This is the mistake that costs people a reprint, and it happens constantly.
Standard front lit display fabric is too opaque. Put it in a lit frame and the light does not pass through evenly, so you get bright patches where the LEDs sit and dull areas between them. The graphic looks dirty rather than lit.
Backlit rated fabric is formulated to transmit light evenly while holding colour saturation on the face you actually look at. It is denser, it has a reflective back surface, and it is printed differently.
If you are ordering a graphic for a frame you already own, say clearly that it is for a backlit application. A standard fabric order for a lit frame cannot be fixed after printing.
Why Lightboxes Need a Blockout Backer
A lightbox is a reflective chamber. Light from the LEDs bounces around inside it before passing through the graphic, and that bouncing is what makes the illumination even.
Without an opaque blockout layer at the back, light escapes out the rear of the frame. Two things go wrong. The front loses brightness, and the back of your display glows visibly, which looks unfinished in an island booth or a window.
On a double sided lightbox the blockout sits between the two printed faces instead, so neither side shows through to the other.
Edge Lit or Direct Backlit LEDs
Edge lit. LED strips run around the inside perimeter of the frame and the light is guided across the panel. This keeps the profile slim, which is what you want on a wall mounted lightbox or anywhere depth is limited. It works well up to moderate sizes.

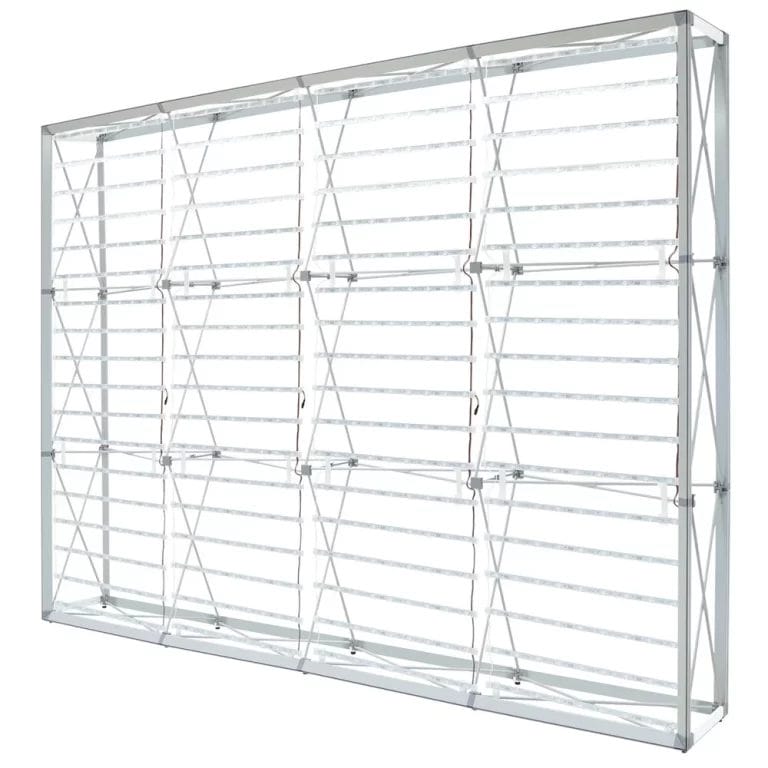

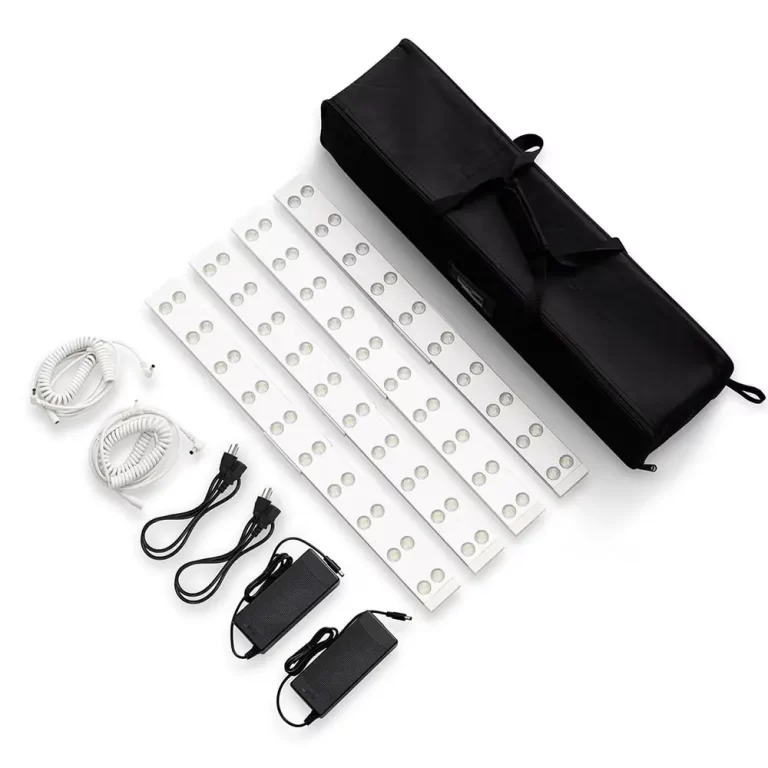

Direct backlit. LED modules are spread across the whole back panel, lighting the graphic straight through. Needed once the panel gets large, because edge lighting cannot reach the centre of a wide display evenly. The frame is deeper as a result.
Where hotspots are a risk, optical lenses spread the output of each LED so the light arrives at the fabric already diffused rather than as points.
Frame Depth and Even Illumination
Depth is not a styling choice. It is the distance the light has to travel and blend before it reaches the graphic.
Slim profiles around 3 inches deep look elegant and suit wall mounting, but they need tighter LED spacing and better diffusion to stay even. Deeper profiles around 4 to 5 inches give the light more room to spread, which is why large freestanding lightboxes and trade show backwalls tend to use them.
If a wall mounted lightbox sits in a corridor or a doorway, check clearance requirements for your building before choosing a deep profile.
Backlit Display Sizes and Formats
Almost any display format can be built as a lightbox. What changes is the lighting behind it.

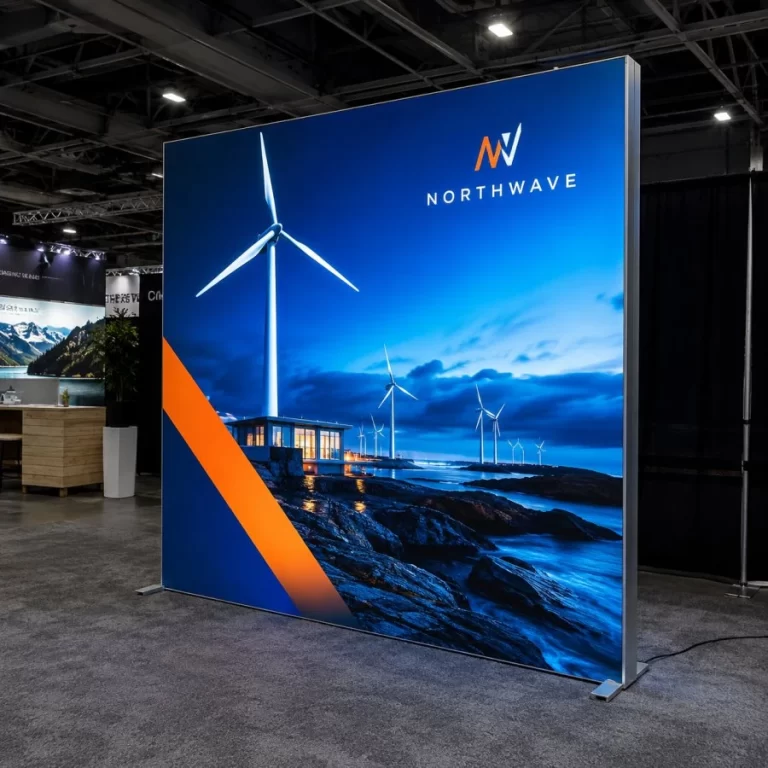

- Backwalls. 8ft, 10ft, and 20ft widths at around 8ft high. A 20ft lit backwall carries a graphic of roughly 240 by 98 inches and packs into cases at around 68 lb.

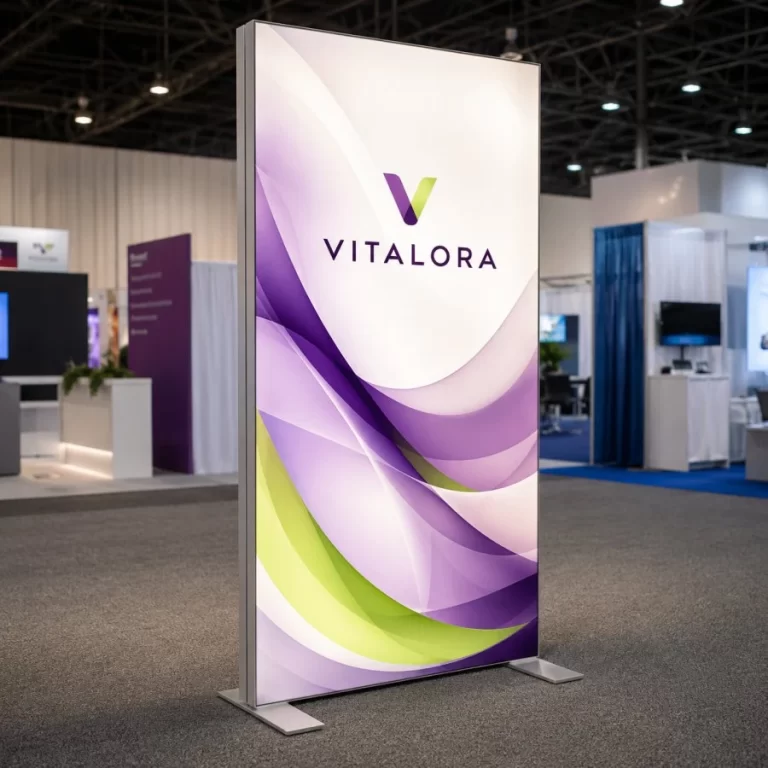

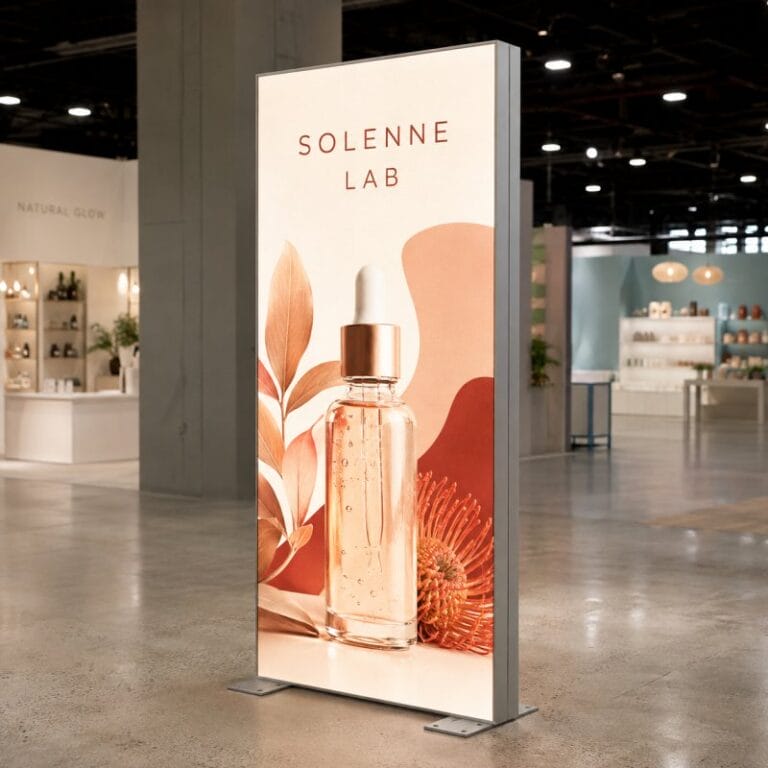

- Towers and totems. Narrow vertical lightboxes for height and wayfinding, often double sided.
- Lit counters. A glowing counter front. See counters and podiums for the hardware.
- Wall mounted lightboxes. Retail, lobby, and showroom installations, usually slim edge lit.
- Tabletop lightboxes. Small formats for counters, reception desks, and product displays.
The frames themselves are the same silicone edge systems used for unlit walls. If you want the construction detail on how the graphic seats into the channel, that is covered on our tension fabric displays page.
Single Sided or Double Sided Lightboxes
Single sided for an inline booth, a wall, or a window where only one face is ever seen. The blockout goes at the back.
Double sided for island booths, open floor placements, and anywhere people approach from both directions. Two lit faces, blockout in between, and the option of different artwork on each side.
Double sided costs more in fabric and in power draw, so it is worth checking your booth layout before ordering. On an inline booth it is money spent on a face nobody sees.
Power, and the Electrical Order Most Exhibitors Forget
A lightbox needs a standard 110V connection. That part is easy. The part that catches people out is where the power comes from on the show floor.
Basic exhibitor electrical packages do not always include a floor outlet inside your booth space. Plenty of people arrive with a beautiful lit backwall and nowhere to plug it in, and ordering power on site during move in is both expensive and slow.
Check your exhibitor kit and confirm a floor outlet is on the order before the show. Our trade show booth cost breakdown covers show services and where those charges land.
On the consumption side, LED draw is modest. Slim edge lit frames run on a small external supply, while larger direct lit walls use an internal supply sized to the panel. Running a lit display all day costs very little in electricity. It is the outlet, not the wattage, that causes problems.
Preparing Artwork for Backlit Printing
Backlit artwork does not behave like print you view under reflected light. Light coming through the fabric lifts everything, so a design that looks balanced on screen can read washed out once it is lit.
- Supply files in RGB rather than CMYK, since backlit output is closer to how a screen emits light
- 150 dpi at full size is the working standard for large format backlit fabric
- Use the template for your exact frame, because the silicone edge and the tension take a margin all the way round
- Deep saturated colour and strong contrast survive illumination. Pale tints and thin light type disappear
- Photography with real depth and dark areas looks dramatic lit. Flat pastel layouts do not
We review every file for scale, resolution, and how it will behave once lit, and send a proof before printing. If the artwork was built for an unlit display, we will tell you what needs adjusting rather than printing it and hoping.
Reprinting Backlit Graphics for an Existing Frame
Lighting hardware outlasts campaigns by years. If your frame and LEDs still work, you only need new fabric.
Send us the frame system or the channel dimensions and we will match the silicone profile and the finished size, printed on backlit rated material. This applies to frames bought from other suppliers as well. It is by far the cheapest way to put a new lit display in front of people.
Where Backlit Displays Are Used
- Trade show backwalls and island booths
- Retail windows and in store promotions
- Shopping centre and mall units
- Showrooms and product feature walls
- Office lobbies and reception areas
- Restaurants, clinics, and menu boards
- Product launches and brand activations
Lit displays earn their cost fastest in two situations. Dim venues, where an unlit graphic simply disappears. And windows viewed after dark, where the display keeps working long after the shop has closed.
Backlit Printing in Vancouver
We print at our shop on Victoria Drive in East Vancouver. For lit displays that matters more than usual, because a backlit graphic can only really be judged lit. You can see it on the frame with the LEDs on before it leaves.
For exhibitors at the Vancouver Convention Centre, BC Place, or the PNE, collecting locally means the display travels in your own vehicle rather than through the freight dock, which normally avoids material handling charges. We supply across Metro Vancouver and the Fraser Valley and ship nationally.
Building the Rest of the Booth
A lit wall next to unlit pieces makes the unlit pieces look tired, so plan the booth together. We print counters and podiums, table throws, and pop up displays alongside lightboxes so colour matches across every surface.
For a fully built environment see custom trade show booths, or browse all trade show displays.
Backlit Display FAQ
Can I use my existing fabric graphic in a backlit frame?
Usually not. Standard front lit fabric is too opaque and will illuminate unevenly. Backlit frames need backlit rated fabric, which is a different material printed differently.
What is the difference between edge lit and direct backlit?
Edge lit places LEDs around the frame perimeter and keeps the profile slim, which suits wall mounted and smaller displays. Direct backlit spreads LED modules across the back panel and is needed for large formats to stay even.
Why does my lightbox have bright patches?
Hotspots come from LEDs sitting too close to the fabric, spacing that is too wide, or the wrong fabric. Correct depth, diffusion or optical lenses, and backlit rated material solve it.
Do I need a blockout layer?
Yes on almost every lightbox. It stops light escaping out the back, keeps the front bright, and on double sided units stops one face showing through to the other.
What power does a backlit display need?
A standard 110V outlet. Consumption is low, but confirm your exhibitor electrical order includes a floor outlet inside your booth, because basic packages sometimes do not.
Single sided or double sided?
Single sided for inline booths, walls, and windows. Double sided for island booths and open floor placements where people approach from both directions.
How should artwork be supplied?
RGB, 150 dpi at full size, on the template for your specific frame. Favour saturated colour and strong contrast, because illumination lifts pale tones until they vanish.
Can I replace the graphic later and keep the frame?
Yes, including frames bought elsewhere. Send the frame system or channel dimensions and we will print a replacement on backlit rated fabric to fit.
