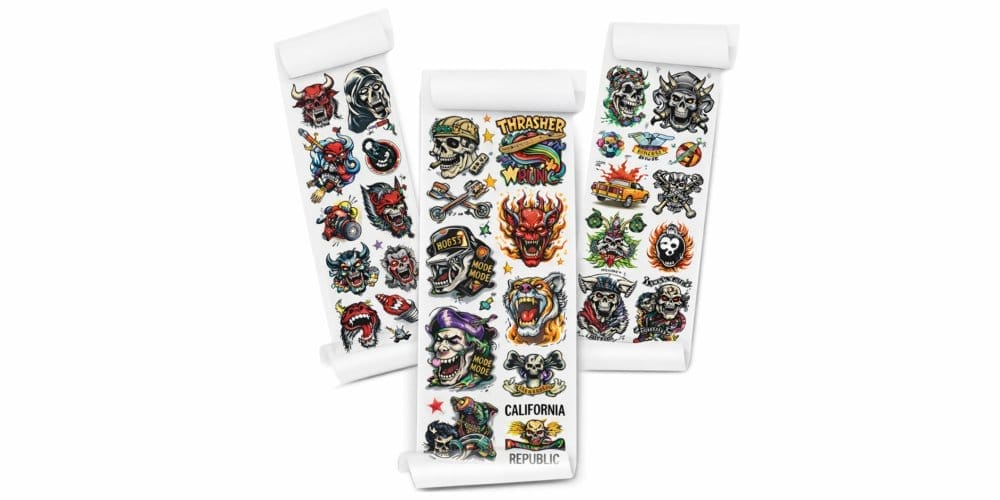

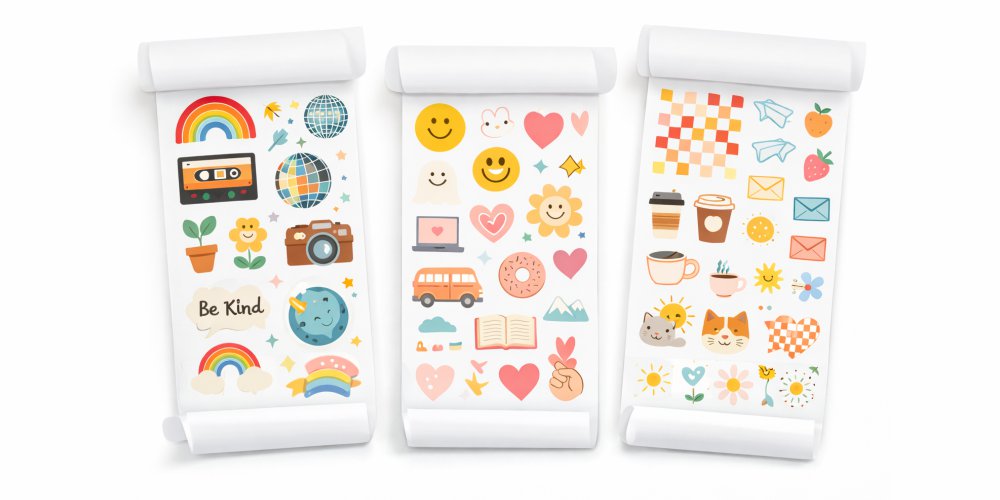

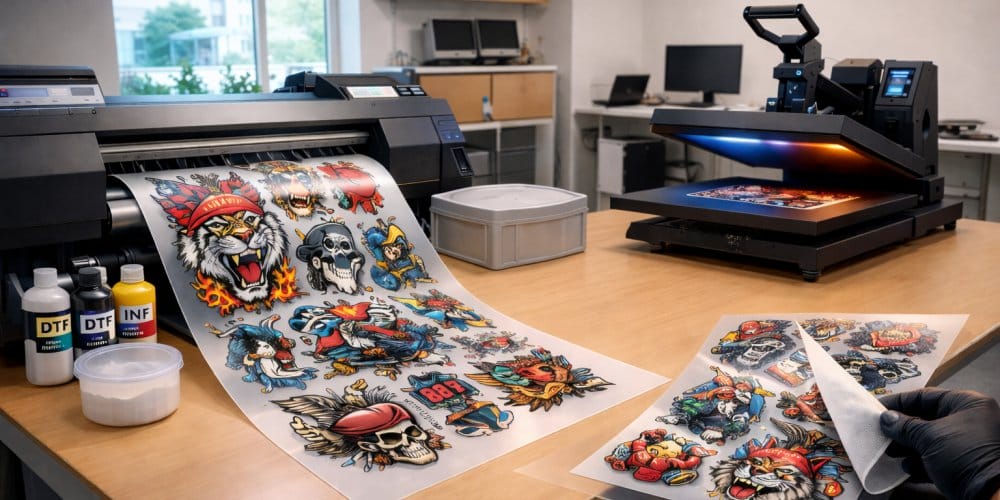

A DTF gang sheet combines several transfer images in one printable layout. It can contain different designs, repeated copies of one design, or both. After printing and curing, the images can be cut apart and heat pressed individually onto suitable garments.
The useful part is planning the sizes and quantities together. A good layout preserves the artwork’s intended dimensions and leaves enough room to separate the transfers. Filling the sheet is secondary to producing the transfers you actually need.
This guide explains how to prepare a gang-sheet enquiry and review the layout. For printed film you will apply yourself, explore Firebird Prints’ ready-to-press DTF transfers in Vancouver. If you want finished decorated garments instead, use the DTF garment printing service.
When A Gang Sheet Makes Sense
A gang sheet is a layout format, not a separate decoration method. The same DTF production process creates the transfers whether the sheet contains a single repeated logo or a mixture of artwork.
It is worth considering when you need several chest logos, front and back graphics for the same garments, or a controlled test of different designs. It can also help organise repeated artwork for a club or small brand. Different images do not have to share a colour palette, but every file must be suitable for the production workflow.
Do not assume a gang sheet is always cheaper than ordering transfers another way. Compare the usable transfers, preparation needs, cutting work and complete quote. Adding unwanted logos to fill spare space does not automatically improve value.
Start With A Design List, Not An Empty Canvas
Before arranging anything, record each design’s finished width, height, quantity and intended use. Treat the same logo at two sizes as two separate items.
| Design Version | Illustrative Finished Size | Copies Needed |
|---|---|---|
| Chest Logo | 8 × 8 cm | 12 |
| Back Graphic | 25 × 30 cm | 12 |
| Total Transfers | Two separate graphics per garment | 24 |
This is a counting example, not a recommended placement size, a Firebird production limit or a claim that all 24 transfers fit on one sheet. The selected garment and printable sheet area still need checking.
If six garments need the back graphic and the other six need only the chest logo, the requirement becomes 18 transfers rather than 24. Resolve that difference before duplicating artwork across a layout.
Also distinguish copies of an image from copies of a sheet. Ordering two copies of a layout containing 12 chest logos produces 24 chest logos. Keep a separate design list so the final sheet count can be checked against the actual garment plan.
Confirm The Sheet Specifications Before Laying Out Artwork
Ask Firebird Prints for the current printable width, available lengths or sheet formats, required edge margins and spacing between designs. Do not borrow another supplier’s dimensions: the physical film width and usable print area may differ.
Confirm whether you should submit individual files and a quantity list or a completed gang-sheet file. If layout assistance is needed, ask what is available and how any artwork preparation is quoted. Do not assume access to a particular online builder or automatic nesting service.
Once those details are confirmed, create the document at the correct physical dimensions. Use one unit system throughout, and preserve the aspect ratio when setting each design’s size. A file named “large logo” is less useful than a clear width, height and quantity.
Prepare Each Image At Its Finished Size
Check Pixel Dimensions And Fine Detail
For raster images, resolution depends on the intended output dimensions. For example, an image 2,400 pixels wide printed at 8 inches has 300 pixels per inch. The same image stretched to 16 inches has 150 pixels per inch. Changing the resolution label alone does not add detail.
Those figures illustrate the calculation; they are not a universal Firebird acceptance rule. Have the original artwork assessed at the size you want. For a wider explanation of file types, use the vector vs PNG artwork guide.
Inspect small lettering, isolated dots and narrow lines at actual size. A shape can look visible on screen while being too delicate for reliable transfer production and adhesion. Ask for the current minimum detail requirements rather than assuming a tiny version of a large logo will work.
Separate A Transparent Background From Transparent Artwork
A transparent background removes the surrounding rectangle. It does not mean the printed parts of the design should be semi-transparent. Faded edges, low-opacity shadows and tiny scattered pixels need special review because the colour, white base and adhesive may not reproduce the screen effect as expected.
Check the image against both light and dark backgrounds. Remove accidental boxes and stray pixels while preserving any intentional white lettering or shapes. A checkerboard exported as part of an image is a printed background, not real transparency.
Confirm Export And Colour Settings
Ask which file format and colour profile suit the order. A transparent PNG can preserve a raster design’s clear background; a vector or PDF workflow needs its own checks for fonts, embedded images and effects. Keep the editable originals separately from the final export.
Include a reference when a brand colour is important. A gang sheet does not make different screens, fabrics and physical prints identical, and placing designs on the same sheet is not a guarantee of exact colour matching.
Arrange The Layout For Cutting And Application
Place the largest required graphics first, then fit the smaller ones into the remaining usable space without changing their approved sizes. Rotate artwork only where it remains compatible with the supplier’s file instructions and a clear cutting plan.
Leave the confirmed separation between images, including their visible outlines and small projecting details. Two designs can have separate centres while their outer edges still overlap. Allow enough access to cut them apart without trimming into adjacent artwork.
Keep a layout map outside the production artwork if labels would help identify the pieces. Unwanted captions, dimension arrows, crop marks or mockup backgrounds can become part of the print when included in the submitted image.
Recount the artwork after arranging it. A visually full sheet can still contain the wrong number of one design or a duplicate of an outdated version.
Catch Common Gang Sheet File Problems
| Problem | Why It Matters | Correction |
|---|---|---|
| Design Resized To Fill A Gap | The transfer no longer matches the planned garment placement. | Restore the approved dimensions; leave unused space if necessary. |
| Artwork Touches Another Image | Cutting may damage one or both transfers. | Restore the supplier’s required clearance. |
| Unwanted Background Or Halo | The box or edge pixels may appear in the finished transfer. | Inspect transparency and clean the original file. |
| Small Details Disappear | Fine elements may not reproduce or adhere reliably. | Review at actual size and simplify only with artwork approval. |
| Entire Sheet Scaled During Export | Every graphic changes size together. | Reopen the exported file and verify document and image dimensions. |
Keep Application Instructions With The Transfers
Once the transfers arrive, compare the pieces with your design list before cutting and pressing. Use the instructions supplied for those specific transfers, including temperature, pressure, pressing time, peel method and any finishing step.
Do not treat settings from another film or supplier as interchangeable. The garment’s heat sensitivity, coating, stretch and colour can affect suitability. Test the supplied transfer on the intended garment before committing to the full run, particularly when the fabric is unfamiliar.
Gang-sheet layout alone does not determine durability. Artwork detail, transfer production, storage, fabric compatibility, application and care all matter. A densely packed layout is not evidence of a better-performing transfer.
For unused transfers, follow the supplied storage guidance. Keep the instructions and order reference with them, protect them from moisture and contamination, and ask for the recommended storage period rather than assuming an unlimited shelf life.
A Final Gang Sheet Checklist
- Printable sheet dimensions, edge margins and design spacing are confirmed.
- Each artwork version has a finished size, units and quantity.
- Required copies reconcile with the number of sheets ordered.
- Artwork is clear at its intended size, with no accidental backgrounds or stray pixels.
- Small details and transparency effects have been reviewed.
- The export preserves the approved dimensions and reading direction.
- The supplier has confirmed the format, colour settings and mirroring requirements.
- Garment compatibility and application instructions are accounted for.
Frequently Asked Questions
Yes. It can contain repeated copies of one design, different designs or a combination. Each intended size needs its own quantity in the design list.
It depends on the confirmed printable area, artwork dimensions, spacing and arrangement. Total image area alone does not establish whether the shapes will fit. Do not shrink an approved design just to increase the count.
Many transfer suppliers request artwork in its normal reading direction and handle mirroring during production. Confirm Firebird’s submission instructions before exporting. Do not reverse the file simply because the transfer is eventually printed in reverse on film.
A transfer-only order supplies printed film for application with your own suitable equipment. Finished decorated garments are a different order, handled through Firebird’s DTF garment printing service.
You can request a new order for that design. Keep the individual artwork, dimensions and version reference so it can be quoted separately. Do not assume the same price, sheet arrangement or availability as the original mixed order.
Prepare Your DTF Transfer Enquiry
Send Firebird Prints your artwork, finished dimensions, quantities by design and size, intended garment fabrics and required date. Include a layout preview if you have one, and ask for the current sheet and file specifications before finalising it.
